ISHIGAKI COMPANY, LTD.

Non-stop Pump Gate "FLOOD BUSTER" IGAH-S/IGDH-S

Non-stop Pump Gate  A pump gate that can operate at full speed on any water level without stopping

Equipment Advantages

  • Functionality

    The operation is simple as the pump automatically switches the operation modes according to the water level.

  • Durability

    With FLOOD BUSTER it is possible to reduce electric devices such as inverters. This also reduces the risk of failure.

  • Safety

    By accelerating the timing of water discharging, it supports strong urban development against flooding.

  • Operability

    Because it does not require an inverter, it achieves simple operation.

  • Economic Efficiency

    With short construction period and simple and compact equipment, it reduces the total cost of a pumping station.

Applications

  • Rainwater Drainage
  • Agricultural Drainage
  • Inland Water Exclusion in Rivers and Ports, etc.

Operation Modes

The conventional pump gate would have to be turned off when the water level drops to the minimum operable water level. FLOOD BUSTER, however, will shift the modes, "Air", "All-drain", "Air and water", "Standby", and control the drainage volume.
The modes "Air" and "Standby" were adopted for the first time in the horizontal submersible pump. These modes are preparatory states, which can immediately restart drainage while minimizing power consumption.

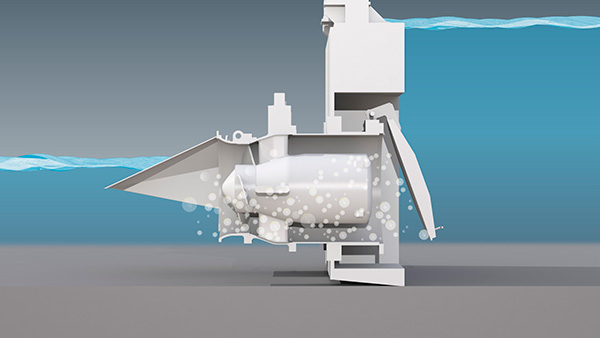

Air

Air

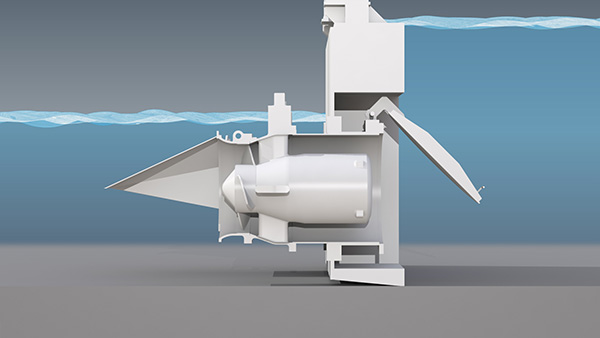

All-drain

All-drain

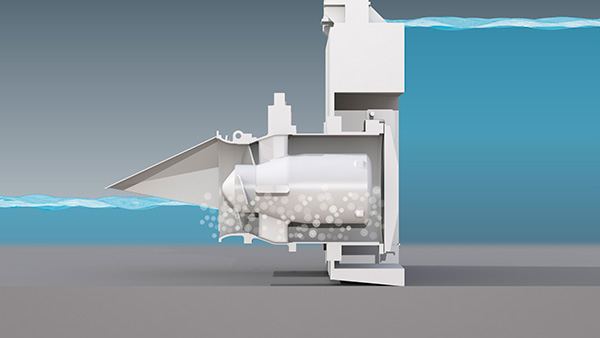

Air/water

Air/water

Standby

Standby

Specification

Pump SizeΦ300~1200mm
Discharge6~180㎥/min
Total head1.5~5.0m
