ISHIGAKI COMPANY, LTD.

Water Filtering System FW - Fiber Wakishimizu

Water Filtering System FW - Fiber Wakishimizu Rapid Water Treating System with Fabric Filter. High capacity water filtration system for low solids concentration.

Equipment Advantages

  • Compact Space Saving Design

    Light weight and 3-5 times smaller footprint compared with Sand Filter

  • Stable Operation with recovery system of filter media

    Reliable fiber media washing system provides for a stable operation

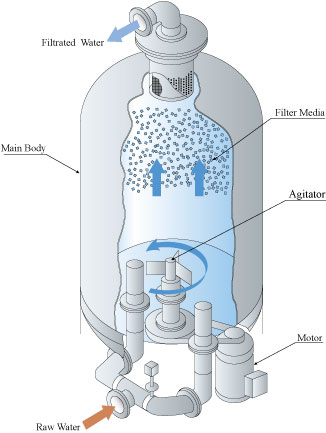

Mechanism



Filtration Process

Raw water fed by the pump from the bottom of the FW main body is filtered by the floating fiber media.
Treated water flows out from the top of the FW.

Agitating

When Fiber-Wakishimizu detects the parameters of washing times through the pressure gauge, the agitator begins to wash the media.

Washing Filter Media

After the agitator begins operations, the washing filter media process follows, in which raw water is fed from the top of the main body as backwashed water.

Returning Slurry

After the washing filter media process and, the fed raw water purges all the solids that remain suspended in the main body and then the water re-circulates.

Applications

Water Treatment

  • Industrial water treatment
  • Sea water treatment
  • Rain water treatment
  • Industrial waste water
  • Sewage water treatment
  • Advance sewage water treatment

Water Preservation

  • Advance sewage treatment of discharged water
  • Aquarium water purification
  • Swimming pool water purification
  • Fish faming water purification
  • Pond and late water purification

Download Catalogue

Fiber Media Rapid Filtration Equipment (Model IFW)

Fiber Media Rapid Filtration Equipment (Model IFW)
